The VX4000 is the largest 3D printing system for sand molds in the world, with a contiguous footprint of 4 x 2 x 1 meters. The VX4000 is unrivaled in terms of build volume. Unlike the smaller 3D printing systems from voxeljet, the VX4000 uses an innovative and patented layer construction process that ensures consistent shift times, maximum precision and component quality, even for high-volume production orders and smaller component series.
In terms of flexibility and reproducibility the VX4000 is in a class of its own. If large-format special shapes or smaller parts in series quality are required, the VX4000 offers both the installation space and the precision and speed to produce them efficiently and cost-effectively. With a bidirectional print head technology, the VX4000 is able to print the entire construction field of 4 meters length and 2 meters width in only two passes.
By using foundry-standard materials, 3D-printed forms can be seamlessly integrated into existing value chains. The VX4000 uses furan resin optimized for 3D printing and standardized quartz sand/silica. The print head works with a resolution of up to 200 dpi and can therefore reproduce even the most complex component geometries precisely and to an extremely small margin. Ideal for supplementing existing production or for cushioning volatile production peaks.
As a robust 3D printer, the VX4000 is ideally suited for demanding, industrial applications in a multi-shift operation. The VX4000 is capable of processing enormous volumes, thanks to an innovative and adapted printing process, the weight of the operating resources is not transferred to the sensitive machine components.
Smart to operate.
The VX4000 can do many things. The operation remains simple due to a well thought-out ergonomic concept across the entire voxeljet VX series.
Seamless integration
The use of foundry-standard materials allows the moulds, parts and models to be processed quickly.
Maximize productivity
The VX4000 is one of the most economical and productive 3D printing systems in the with a print volume of 139 l/h.
Precision
With a resolution of up to 200 dpi, the VX4000 can image even the finest details in the highest precision, even with large-format components up to 4 m long.
Economical and flexible
The VX4000 prints large forms in small numbers or small forms in very large numbers.
Continuous operation ready
As a robust 3D printing system, it proves its reliability day after day in continuous operation in industrial multi-shift operation.
Application fields
With a building space of 4,000 x 2,000 x 1,000 mm, the VX4000 is ideal for 3D printing of large-format individual molds or a variety of small batch components.
The VX4000 is suitable for:
Flexible in the production
Faster, more variants – without high costs upfront. Binder Jetting 3D printing offers the industry decisive competitive advantages in all areas where speed and flexibility are required.
Time to market – Reduced development and production times in design and function bring your products to market much faster.
Geometric independence – additive production removes the manufacturing limitations of conventional processes. Printable is what is constructively conceivable. For products that are lighter, more efficient or simply go beyond the limits of what is currently possible.
Scaling – If larger components or higher quantities are required, you can easily transfer production within the voxeljet VX series to other, smaller or larger voxeljet VX series systems.
The Binder Jetting printing process
The binder jetting is a 3D pinting process in which powder material applied in thin layers is selectively bonded to a binder.
We want to offer our customers a complete solution and position ourselves as a supplier of high-quality, ready-to-install components in record time. With the VX4000 from voxeljet we are able to drastically increase the flexibility of our production. This means we can react quickly to even the most complex projects. This is because 3D printing gives us a unique competitive advantage, especially when it comes to expanding our business areas.
K. E. Shanavaz, CEOPeekay Steel Casting (P) LTD.
Peekay Steel Casting (P) Ltd.
Technical details
With a bidirectional print head technology, the VX4000 is able to print the entire construction field of 4 meters long and 2 meters wide in only two passes. While the print head is still printing on the job site, the 3D printing system begins applying the next layer of sand.
Process:
voxeljet Binder Jetting Process
Resolution:
Up to 200 dpi
Output:
139 liters per hour
Jobbox size:
Height 1.000 mm, Length 4.000 mm, Width 2.000 mm

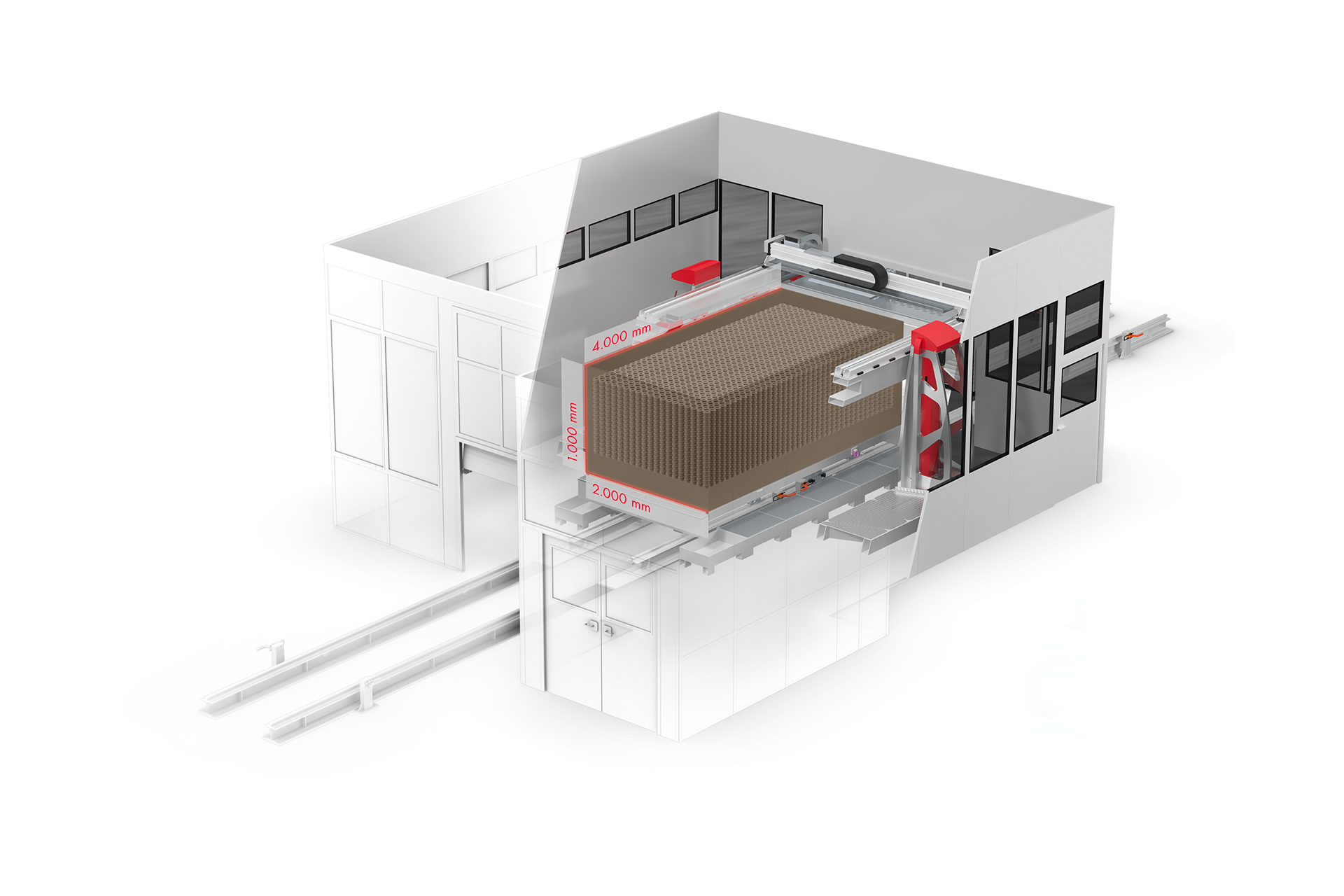

The inside of the VX4000 Industrial 3D Printer
Process
Our process is furan resin based (ODB) and is ideal for the high quality requirements of the foundry industry.
Sand types
We offer classical quartz sand with different grain sizes.
Post-processing
The finishing is done by epoxy resin infiltration or sealing. As long as the parts are not used for the casting process.
Documents fordownload
Support &Services
Do you have specific questions about the innovative uses of 3D printing in your production? Do you want to maintain machines autonomously or qualify new materials? Your questions on how to optimize production with additive manufacturing technologies are priority for voxeljet.
Intelligent financing
Smart financing of new processes and production methods requires the financing partner to have in-depth industry and market knowledge.
Additive Production Back-Up
As a security pack for smooth production, voxeljet offers our production centers as backup capacity at special conditions for commissioning, unplanned downtimes and peak loads.
Casting manufacturing 4.0
Complete castings in aluminium, iron, magnesium, steel and bronze directly from the CAD data set. With complex undercuts, realized in 3D printing without tools.
